FA37減速機詳細信息
FA37減速機
FA37減速機電機功率:FA系列減速電機
FA37Y0.12KW,FA37Y0.18KW,FA37Y0.25KW,FA37Y0.37KW,FA37Y0.55KW,FA37Y0.75KW,FA37Y1.1KW,FA37Y1.5KW,FA37Y2.2KW電機,FA37Y3KW電機.(可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機)。

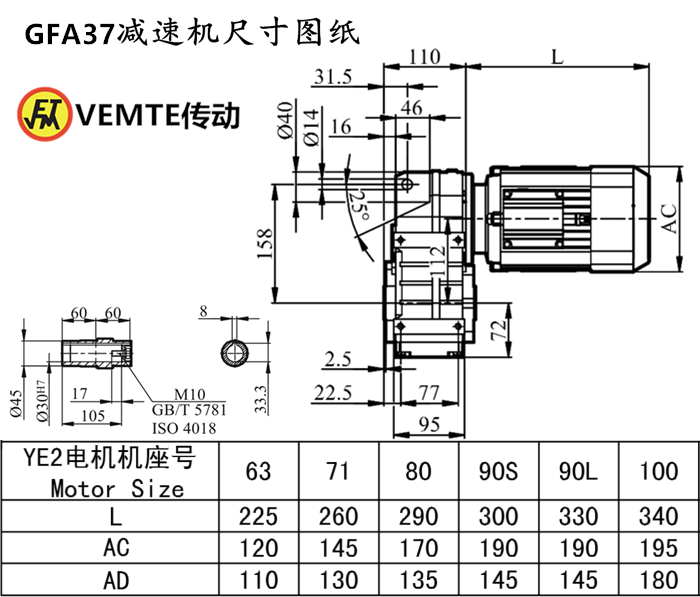

FA37減速機安裝尺寸:輸出孔Φ33.3(可定做),高248*寬165*長160
FA37齒輪減速器減速比:
減速機128比,減速機117比,減速機100比,減速機86比,減速機80比,減速機70比,減速機66比,減速機58比,減速機54比,減速機51比,減速機47比,減速機43比,減速機38比,減速機35比,減速機31比,減速機28比,減速機23比,減速機20比,減速機19比,減速機17比,減速機15比,減速機14比,減速機12比,減速機11比,減速機10比,減速機9比,減速機8比,減速機7比,減速機6比,減速機5比,減速機4比,減速機3比
FA37減速機輸出轉數:
減速機11rpm/min,減速機12rpm/min,減速機14rpm/min,減速機16rpm/min,減速機17rpm/min,減速機20rpm/min,減速機21rpm/min,減速機24rpm/min,減速機26rpm/min,減速機27rpm/min,減速機30rpm/min,減速機32rpm/min,減速機37rpm/min,減速機39rpm/min,減速機44rpm/min,減速機50rpm/min,減速機59rpm/min,減速機68rpm/min,減速機73rpm/min,減速機82rpm/min,減速機89rpm/min,減速機98rpm/min,減速機109rpm/min,減速機126rpm/min,減速機134rpm/min,減速機156rpm/min,減速機175rpm/min,減速機188rpm/min,減速機208rpm/min,減速機231rpm/min,減速機269rpm/min,減速機286rpm/min,減速機332rpm/min,減速機371rpm/min(以上轉數均為四級電機算出的,減速機可用兩級電機,減速機六級電機計算,減速機也可以用變頻電機調速)
FA37減速機輸出扭矩:
減速機200Nm,減速機190Nm,減速機185Nm,減速機175Nm,減速機170Nm,減速機145Nm,減速機140Nm,減速機135Nm,減速機125Nm,減速機120Nm,減速機110Nm,減速機105Nm。(以上扭矩均為四級電機得出扭矩,需要比上面更大的扭矩,可把電機功率加大,減速機型號加大)
FA37電機減速器一體機型號:
FA37DRE100M4,FA37DRE63M4,FA37DRE71M4,FA37DRE80M4,FA37DRE90M4,FA37DRS100M4,FA37DRS63M4,FA37DRS71M4,FA37DRS80M4,FA37DRS90M4,FA37DT100M4,FA37DT63M4,FA37DT71M4,FA37DT80M4,FA37DT90M4,FA37DV100M4,FA37DV63M4,FA37DV71M4,FA37DV80M4,FA37DV90M4,FA37Y100M4,FA37Y63M4,FA37Y71M4,FA37Y80M4,FA37Y90M4,,FA37DRE100L4,FA37DRE63L4,FA37DRE71L4,FA37DRE80L4,FA37DRE90L4,FA37DRS100L4,FA37DRS63L4,FA37DRS71L4,FA37DRS80L4,FA37DRS90L4,FA37DT100L4,FA37DT63L4,FA37DT71L4,FA37DT80L4,FA37DT90L4,FA37DV100L4,FA37DV63L4,FA37DV71L4,FA37DV80L4,FA37DV90L4,FA37Y100L4,FA37Y63L4,FA37Y71L4,FA37Y80L4,FA37Y90L4,,FA37DRE100S4,FA37DRE63S4,FA37DRE71S4,FA37DRE80S4,FA37DRE90S4,FA37DRS100S4,FA37DRS63S4,FA37DRS71S4,FA37DRS80S4,FA37DRS90S4,FA37DT100S4,FA37DT63S4,FA37DT71S4,FA37DT80S4,FA37DT90S4,FA37DV100S4,FA37DV63S4,FA37DV71S4,FA37DV80S4,FA37DV90S4,FA37Y100S4,FA37Y63S4,FA37Y71S4,FA37Y80S4,FA37Y90S4。

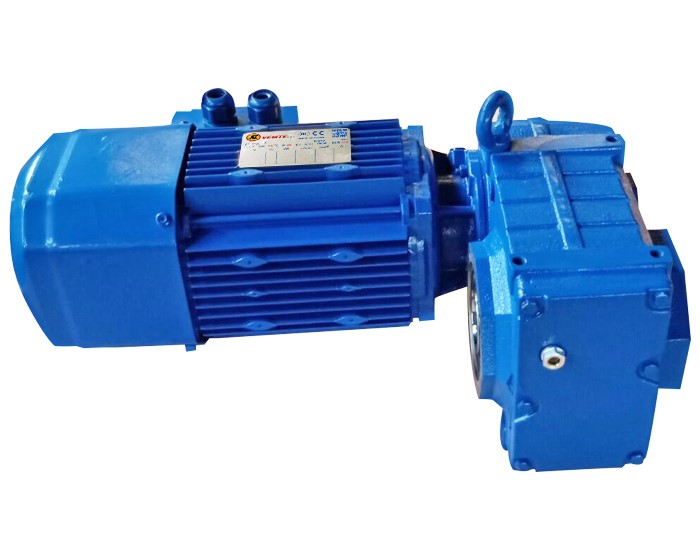

FA系列減速器FA37配各種電機實物圖:
FA37減速機生產工廠展示:看廠請聯系微信13826972124,獲取位置,需提前一天預約http://dgzxbz.com.cn/product/list-faxiliejiansuji-cn.html
推薦類似型號:減速機FAF37
關鍵詞:防爆電機減速機_分體減速機電機_FA系列減速機_GFA型減速器生產廠家
FA系列齒輪減速機型號:FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機
FA系列電動機減速機可配變頻電機,剎車電機,防爆電機,伺服電機,交流電機,直流電機,三相電機,單相電機 0.12KW-132KW之間
如需工程師幫選型,請加微信13826972124,留言告知工程師參數要求
標簽:  FA37剎車減速電機 FA37減速機 FA37減速器 FFA37斜齒輪減速機 GFA37減速機尺寸圖紙
