減速機FAF157電機功率：

FAF157Y11KW,FAF157Y15KW,FAF157Y18.5KW,FAF157Y22KW,FAF157Y30KW,FAF157Y37KW,FAF157Y45KW,FAF157Y55KW,FAF157Y75KW,FAF157Y90KW,FAF157Y110KW,FAF157Y132KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

減速機FAF157減速比：平行軸減速機

減速器1:267,減速器1:217,減速器1:178,減速器1:162,減速器1:141,減速器1:125,減速器1:108,減速器1:96,減速器1:85,減速器1:78,減速器1:68,減速器1:60,減速器1:52,減速器1:46,減速器1:40,減速器1:32,減速器1:27,減速器1:53,減速器1:43,減速器1:35,減速器1:28,減速器1:25,減速器1:22,減速器1:19,減速器1:16,減速器1:13,減速器1:11

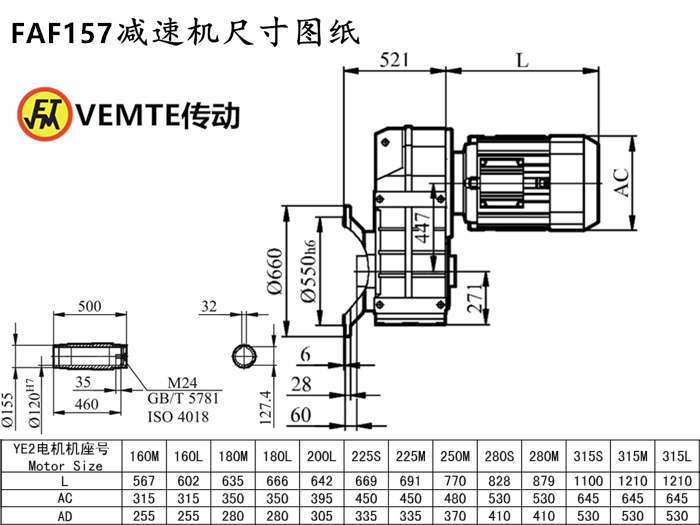

減速機FAF157安裝尺寸：輸出孔Φ127.4（可定做），高1006*寬660*長521（帶法蘭）

齒輪減速器FAF157輸出轉數：

117rpm減速器,5.2rpm減速器,6.4rpm減速器,7.9rpm減速器,8.6rpm減速器,9.9rpm減速器,11rpm減速器,13rpm減速器,15rpm減速器,16rpm減速器,18rpm減速器,21rpm減速器,23rpm減速器,27rpm減速器,30rpm減速器,35rpm減速器,43rpm減速器,51rpm減速器,26rpm減速器,32rpm減速器,39rpm減速器,49rpm減速器,55rpm減速器,63rpm減速器,71rpm減速器,83rpm減速器,100rpm減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機FAF157輸出扭矩：

18000Nm減速器,17000Nm減速器,16000Nm減速器,15000Nm減速器,11000Nm減速器,10000Nm減速器,8000Nm減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

電動減速機FAF157電機型號：

FAF157DRE160M4,FAF157DRE180M4,FAF157DRE200M4,FAF157DRE225M4,FAF157DRE250M4,FAF157DRE280M4,FAF157DRE315M4,FAF157DRS160M4,FAF157DRS180M4,FAF157DRS200M4,FAF157DRS225M4,FAF157DRS250M4,FAF157DRS280M4,FAF157DRS315M4,FAF157DT160M4,FAF157DT180M4,FAF157DT200M4,FAF157DT225M4,FAF157DT250M4,FAF157DT280M4,FAF157DT315M4,FAF157DV160M4,FAF157DV180M4,FAF157DV200M4,FAF157DV225M4,FAF157DV250M4,FAF157DV280M4,FAF157DV315M4,FAF157Y160M4,FAF157Y180M4,FAF157Y200M4,FAF157Y225M4,FAF157Y250M4,FAF157Y280M4,FAF157Y315M4,FAF157DRE160L4,FAF157DRE180L4,FAF157DRE200L4,FAF157DRE225L4,FAF157DRE250L4,FAF157DRE280L4,FAF157DRE315L4,FAF157DRS160L4,FAF157DRS180L4,FAF157DRS200L4,FAF157DRS225L4,FAF157DRS250L4,FAF157DRS280L4,FAF157DRS315L4,FAF157DT160L4,FAF157DT180L4,FAF157DT200L4,FAF157DT225L4,FAF157DT250L4,FAF157DT280L4,FAF157DT315L4,FAF157DV160L4,FAF157DV180L4,FAF157DV200L4,FAF157DV225L4,FAF157DV250L4,FAF157DV280L4,FAF157DV315L4,FAF157Y160L4,FAF157Y180L4,FAF157Y200L4,FAF157Y225L4,FAF157Y250L4,FAF157Y280L4,FAF157Y315L4,FAF157DRE160S4,FAF157DRE180S4,FAF157DRE200S4,FAF157DRE225S4,FAF157DRE250S4,FAF157DRE280S4,FAF157DRE315S4,FAF157DRS160S4,FAF157DRS180S4,FAF157DRS200S4,FAF157DRS225S4,FAF157DRS250S4,FAF157DRS280S4,FAF157DRS315S4,FAF157DT160S4,FAF157DT180S4,FAF157DT200S4,FAF157DT225S4,FAF157DT250S4,FAF157DT280S4,FAF157DT315S4,FAF157DV160S4,FAF157DV180S4,FAF157DV200S4,FAF157DV225S4,FAF157DV250S4,FAF157DV280S4,FAF157DV315S4,FAF157Y160S4,FAF157Y180S4,FAF157Y200S4,FAF157Y225S4,FAF157Y250S4,FAF157Y280S4,FAF157Y315S4

變頻減速機FAF157配各種電機實物圖：

減速機FAF157生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://dgzxbz.com.cn/product/list-fafxiliejiansuji-cn.html

推薦類似型號：F157減速機
