FF87齒輪減速馬達功率：

FF87Y0.55KW,FF87Y0.75KW,FF87Y1.1KW,FF87Y1.5KW,FF87Y2.2KW,FF87Y3KW,FF87Y4KW,FF87Y5.5KW電機,FF87Y7.5KW,FF87Y11KW,FF87Y15KW,FF87Y18.5KW,FF87Y22KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

減速機FF87減速比：

270比減速器,255比減速器,228比減速器,197比減速器,179比減速器,159比減速器,134比減速器,123比減速器,109比減速器,97比減速器,88比減速器,76比減速器,68比減速器,56比減速器,50比減速器,45比減速器,39比減速器,35比減速器,29比減速器,33比減速器,28比減速器,26比減速器,23比減速器,21比減速器,19比減速器,17比減速器,15比減速器,13比減速器,11比減速器,9比減速器,8比減速器,7比減速器,6比減速器,5比減速器,4比減速器 平行軸減速機

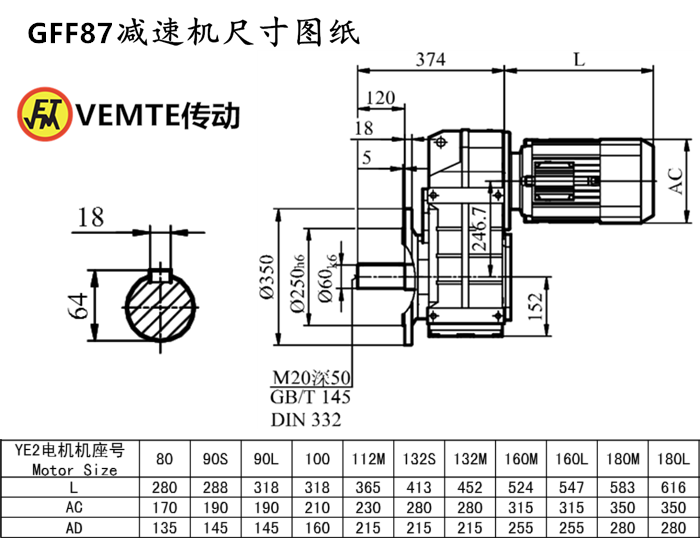

減速機FF87安裝尺寸：輸出軸Φ60+鍵4（可定做），高531*寬330*長374（帶輸出軸）

平行軸減速電機FF87輸出轉數：

5.2rpm減速機,5.5rpm減速機,6.1rpm減速機,7.1rpm減速機,7.8rpm減速機,8.8rpm減速機,10rpm減速機,11rpm減速機,13rpm減速機,14rpm減速機,16rpm減速機,18rpm減速機,20rpm減速機,25rpm減速機,28rpm減速機,31rpm減速機,36rpm減速機,40rpm減速機,48rpm減速機,49rpm減速機,53rpm減速機,59rpm減速機,66rpm減速機,73rpm減速機,82rpm減速機,90rpm減速機,107rpm減速機,122rpm減速機,146rpm減速機,169rpm減速機,190rpm減速機,211rpm減速機,249rpm減速機,285rpm減速機,340rpm減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機FF87輸出扭矩：

3000N.m減速器,2940N.m減速器,2880N.m減速器,2820N.m減速器,2720N.m減速器,2610N.m減速器,2510N.m減速器,2450N.m減速器,1530N.m減速器,1460N.m減速器。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大）

GFF系列減速器GFF87型號：FF87DRE100M4,FF87DRE112M4,FF87DRE132M4,FF87DRE160M4,FF87DRE180M4,FF87DRE80M4,FF87DRE90M4,FF87DRS100M4,FF87DRS112M4,FF87DRS132M4,FF87DRS160M4,FF87DRS180M4,FF87DRS80M4,FF87DRS90M4,FF87DT100M4,FF87DT112M4,FF87DT132M4,FF87DT160M4,FF87DT180M4,FF87DT80M4,FF87DT90M4,FF87DV100M4,FF87DV112M4,FF87DV132M4,FF87DV160M4,FF87DV180M4,FF87DV80M4,FF87DV90M4,FF87Y100M4,FF87Y112M4,FF87Y132M4,FF87Y160M4,FF87Y180M4,FF87Y80M4,FF87Y90M4,FF87DRE100L4,FF87DRE112L4,FF87DRE132L4,FF87DRE160L4,FF87DRE180L4,FF87DRE80L4,FF87DRE90L4,FF87DRS100L4,FF87DRS112L4,FF87DRS132L4,FF87DRS160L4,FF87DRS180L4,FF87DRS80L4,FF87DRS90L4,FF87DT100L4,FF87DT112L4,FF87DT132L4,FF87DT160L4,FF87DT180L4,FF87DT80L4,FF87DT90L4,FF87DV100L4,FF87DV112L4,FF87DV132L4,FF87DV160L4,FF87DV180L4,FF87DV80L4,FF87DV90L4,FF87Y100L4,FF87Y112L4,FF87Y132L4,FF87Y160L4,FF87Y180L4,FF87Y80L4,FF87Y90L4,FF87DRE100S4,FF87DRE112S4,FF87DRE132S4,FF87DRE160S4,FF87DRE180S4,FF87DRE80S4,FF87DRE90S4,FF87DRS100S4,FF87DRS112S4,FF87DRS132S4,FF87DRS160S4,FF87DRS180S4,FF87DRS80S4,FF87DRS90S4,FF87DT100S4,FF87DT112S4,FF87DT132S4,FF87DT160S4,FF87DT180S4,FF87DT80S4,FF87DT90S4,FF87DV100S4,FF87DV112S4,FF87DV132S4,FF87DV160S4,FF87DV180S4,FF87DV80S4,FF87DV90S4,FF87Y100S4,FF87Y112S4,FF87Y132S4,FF87Y160S4,FF87Y180S4,FF87Y80S4,FF87Y90S4

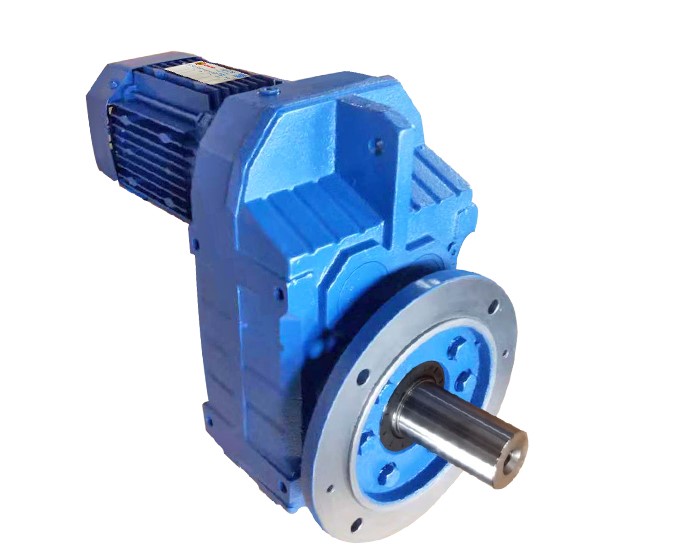

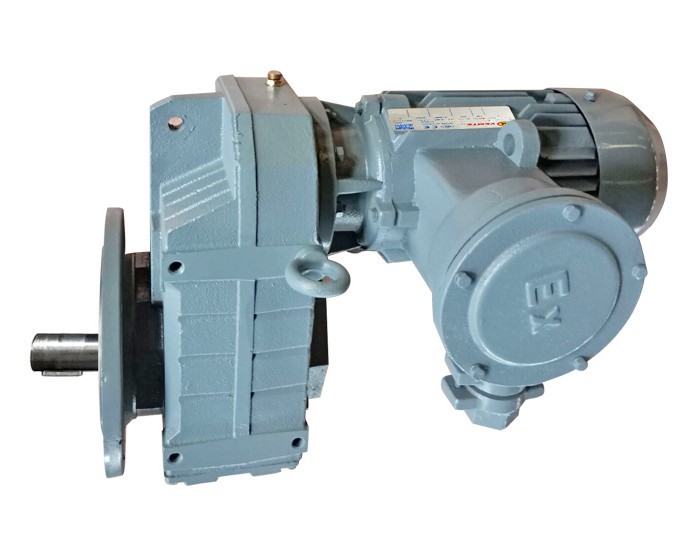

減速機FF87配各種電機的實物圖：

減速機FF87生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://dgzxbz.com.cn/product/list-ffxiliejiansuji-cn.html

推薦類似型號：FA87減速機
