K107錐齒輪減速電機功率：K107Y0.18KW,K107Y0.25KW,K107Y0.37KW,K107Y0.55KW,K107Y0.75KW,K107Y1.1KW,K107Y1.5KW,K107Y2.2KW,K107Y3KW,K107Y4KW,K107Y5.5KW,K107Y7.5KW,K107Y11KW,K107Y15KW,K107Y18.5KW,K107Y22KW,K107Y30KW,K107Y37KW,K107Y45KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

減速機K107減速比：

減速器1:7.35,減速器1:8.69,減速器1:9.94,減速器1:11.73,減速器1:13.43,減速器1:14.64,減速器1:16.75,減速器1:19.74,減速器1:22.62,減速器1:26.32,減速器1:29,減速器1:31.28,減速器1:32.69,減速器1:37,減速器1:42.33,減速器1:49.9,減速器1:57.17,減速器1:66.52,減速器1:73.3,減速器1:82.61,減速器1:90.96,減速器1:100.75,減速器1:112.41,減速器1:121.46,減速器1:143.47 K系列減速機

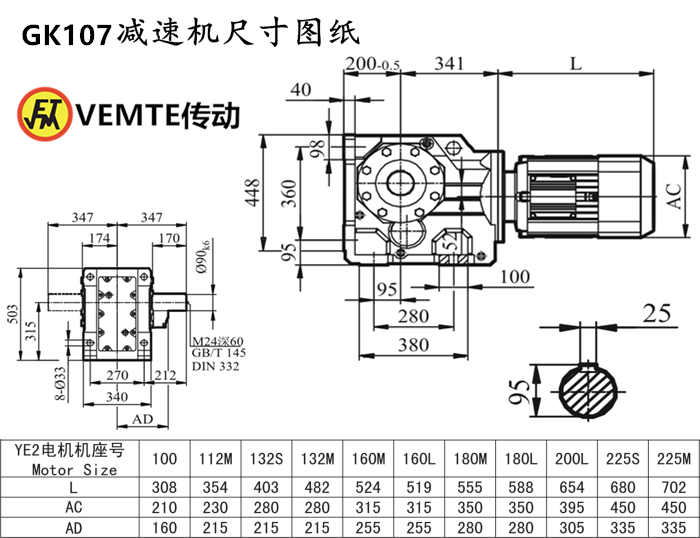

減速機K107安裝尺寸：輸出軸+鍵Φ95（可定做），高448*寬513（帶輸出軸）*長541

K107轉角減速機輸出轉數：

9.8rpm/min減速機,12rpm/min減速機,14rpm/min減速機,15rpm/min減速機,17rpm/min減速機,19rpm/min減速機,21rpm/min減速機,24rpm/min減速機,28rpm/min減速機,33rpm/min減速機,38rpm/min減速機,43rpm/min減速機,45rpm/min減速機,48rpm/min減速機,53rpm/min減速機,62rpm/min減速機,71rpm/min減速機,84rpm/min減速機,96rpm/min減速機,104rpm/min減速機,119rpm/min減速機,141rpm/min減速機,161rpm/min減速機,190rpm/min減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機K107輸出扭矩：

3600N.m減速箱,4070N.m減速箱,4190N.m減速箱,4300N.m減速箱,6800N.m減速箱,6890N.m減速箱,7050N.m減速箱,7200N.m減速箱,7360N.m減速箱,7840N.m減速箱,8000N.m減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

減速機K107電機型號：K107DV100S4,K107DV112S4,K107DV132S4,K107DV160S4,K107DV180S4,K107DV200S4,K107DV225S4,K107DT100S4,K107DT112S4,K107DT132S4,K107DT160S4,K107DT180S4,K107DT200S4,K107DT225S4,K107DRS100S4,K107DRS112S4,K107DRS132S4,K107DRS160S4,K107DRS180S4,K107DRS200S4,K107DRS225S4,K107DRE100S4,K107DRE112S4,K107DRE132S4,K107DRE160S4,K107DRE180S4,K107DRE200S4,K107DRE225S4,K107Y100S4,K107Y112S4,K107Y132S4,K107Y160S4,K107Y180S4,K107Y200S4,K107Y225S4,K107DV100M4,K107DV112M4,K107DV132M4,K107DV160M4,K107DV180M4,K107DV200M4,K107DV225M4,K107DT100M4,K107DT112M4,K107DT132M4,K107DT160M4,K107DT180M4,K107DT200M4,K107DT225M4,K107DRS100M4,K107DRS112M4,K107DRS132M4,K107DRS160M4,K107DRS180M4,K107DRS200M4,K107DRS225M4,K107DRE100M4,K107DRE112M4,K107DRE132M4,K107DRE160M4,K107DRE180M4,K107DRE200M4,K107DRE225M4,K107Y100M4,K107Y112M4,K107Y132M4,K107Y160M4,K107Y180M4,K107Y200M4,K107Y225M4,K107DV100L4,K107DV112L4,K107DV132L4,K107DV160L4,K107DV180L4,K107DV200L4,K107DV225L4,K107DT100L4,K107DT112L4,K107DT132L4,K107DT160L4,K107DT180L4,K107DT200L4,K107DT225L4,K107DRS100L4,K107DRS112L4,K107DRS132L4,K107DRS160L4,K107DRS180L4,K107DRS200L4,K107DRS225L4,K107DRE100L4,K107DRE112L4,K107DRE132L4,K107DRE160L4,K107DRE180L4,K107DRE200L4,K107DRE225L4,K107Y100L4,K107Y112L4,K107Y132L4,K107Y160L4,K107Y180L4,K107Y200L4,K107Y225L4

雙出軸減速機K107配各種電機的實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

減速機K107生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://dgzxbz.com.cn/product/list-kxiliejiansuji-cn.html

推薦類似型號：KF107減速機
