減速機KAF127電機功率：伺服減速機KAF127Y0.18KW,KAF127Y0.25KW,KAF127Y0.37KW,KAF127Y0.55KW,KAF127Y0.75KW,KAF127Y1.1KW,KAF127Y1.5KW,KAF127Y2.2KW,KAF127Y3KW,KAF127Y4KW,KAF127Y5.5KW,KAF127Y7.5KW,KAF127Y11KW,KAF127Y15KW,KAF127Y18.5KW,KAF127Y22KW,KAF127Y30KW,KAF127Y37KW,KAF127Y45KW,KAF127Y55KW,KAF127Y75KW,KAF127Y90KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

KAF127直角減速機減速比：減速箱146.07比,減速箱136.14比,減速箱122.48比,減速箱110.18比,減速箱89.89比,減速箱81.98比,減速箱70.95比,減速箱62.60比,減速箱54.07比,減速箱47.82比,減速箱40.19比,減速箱36.25比,減速箱31.37比,減速箱27.68比,減速箱23.91比,減速箱21.15比,減速箱17.77比,減速箱14.35比,減速箱12.79比,減速箱10.74比,減速箱8.68比

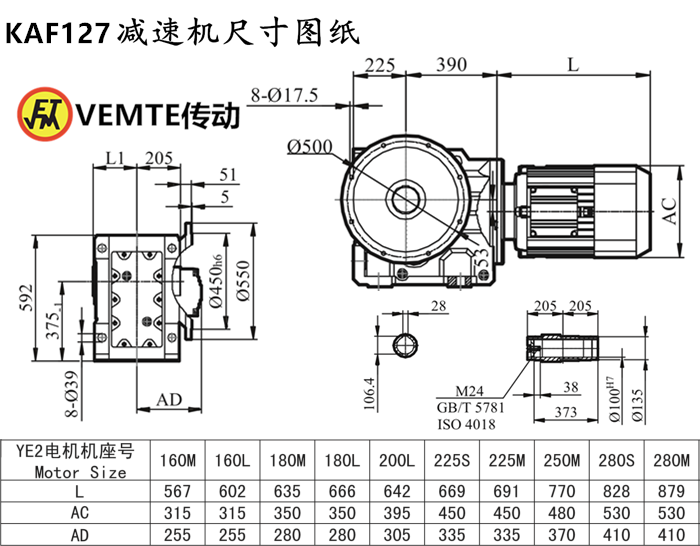

減速機KAF127安裝尺寸：輸出孔+鍵Φ106.4（可定做），高560*寬456（帶輸出法蘭）*長615

KAF127轉角減速機輸出轉數：

9.6rpm/min減速器,10rpm/min減速器,11rpm/min減速器,13rpm/min減速器,16rpm/min減速器,17rpm/min減速器,20rpm/min減速器,22rpm/min減速器,26rpm/min減速器,29rpm/min減速器,35rpm/min減速器,39rpm/min減速器,45rpm/min減速器,51rpm/min減速器,59rpm/min減速器,66rpm/min減速器,79rpm/min減速器,98rpm/min減速器,109rpm/min減速器,130rpm/min減速器,161rpm/min減速器。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機KAF127輸出扭矩：

減速機13000N.m,減速機12100N.m,減速機8530N.m,減速機8000N.m,減速機7230Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速器型號加大,或者兩個減速機組合使用）

GKAF系列減速機GKAF127電機型號：KAF127DV280S4,KAF127DV225S4,KAF127DV200S4,KAF127DV180S4,KAF127DV160S4,KAF127DV132S4,KAF127DV112S4,KAF127DT280S4,KAF127DT225S4,KAF127DT200S4,KAF127DT180S4,KAF127DT160S4,KAF127DT132S4,KAF127DT112S4,KAF127DRS280S4,KAF127DRS225S4,KAF127DRS200S4,KAF127DRS180S4,KAF127DRS160S4,KAF127DRS132S4,KAF127DRS112S4,KAF127DRE280S4,KAF127DRE225S4,KAF127DRE200S4,KAF127DRE180S4,KAF127DRE160S4,KAF127DRE132S4,KAF127DRE112S4,KAF127Y280S4,KAF127Y225S4,KAF127Y200S4,KAF127Y180S4,KAF127Y160S4,KAF127Y132S4,KAF127Y112S4,KAF127DV280M4,KAF127DV225M4,KAF127DV200M4,KAF127DV180M4,KAF127DV160M4,KAF127DV132M4,KAF127DV112M4,KAF127DT280M4,KAF127DT225M4,KAF127DT200M4,KAF127DT180M4,KAF127DT160M4,KAF127DT132M4,KAF127DT112M4,KAF127DRS280M4,KAF127DRS225M4,KAF127DRS200M4,KAF127DRS180M4,KAF127DRS160M4,KAF127DRS132M4,KAF127DRS112M4,KAF127DRE280M4,KAF127DRE225M4,KAF127DRE200M4,KAF127DRE180M4,KAF127DRE160M4,KAF127DRE132M4,KAF127DRE112M4,KAF127Y280M4,KAF127Y225M4,KAF127Y200M4,KAF127Y180M4,KAF127Y160M4,KAF127Y132M4,KAF127Y112M4,KAF127DV280L4,KAF127DV225L4,KAF127DV200L4,KAF127DV180L4,KAF127DV160L4,KAF127DV132L4,KAF127DV112L4,KAF127DT280L4,KAF127DT225L4,KAF127DT200L4,KAF127DT180L4,KAF127DT160L4,KAF127DT132L4,KAF127DT112L4,KAF127DRS280L4,KAF127DRS225L4,KAF127DRS200L4,KAF127DRS180L4,KAF127DRS160L4,KAF127DRS132L4,KAF127DRS112L4,KAF127DRE280L4,KAF127DRE225L4,KAF127DRE200L4,KAF127DRE180L4,KAF127DRE160L4,KAF127DRE132L4,KAF127DRE112L4,KAF127Y280L4,KAF127Y225L4,KAF127Y200L4,KAF127Y180L4,KAF127Y160L4,KAF127Y132L4,KAF127Y112L4

減速機KAF127配各種電機實物圖：可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間

減速機KAF127生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://dgzxbz.com.cn/product/list-kafxiliejiansuji-cn.html

推薦類似型號：K127減速機
