齒輪減速電機R77電機功率：

R77Y0.18KW,R77Y0.25KW,R77Y0.37KW,R77Y0.55KW,R77Y0.75KW,R77Y1.1KW,R77Y1.5KW,R77Y2.2KW,R77Y3KW,R77Y4KW,R77Y5.5KW,R77Y7.5KW,R77Y11KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

減速機R77減速比：GR系列減速電機

減速器1:5.31,減速器1:5.99,減速器1:6.79,減速器1:7.74,減速器1:8.59,減速器1:9.64,減速器1:10.88,減速器1:12.33,減速器1:14.05,減速器1:15.6,減速器1:17.82,減速器1:18.8,減速器1:21.43,減速器1:23.37,減速器1:25.23,減速器1:29,減速器1:33.47,減速器1:36.83,減速器1:43.26,減速器1:52.07,減速器1:54.81,減速器1:57.68,減速器1:65.77,減速器1:77.24,減速器1:81.8,減速器1:92.97,減速器1:102.99

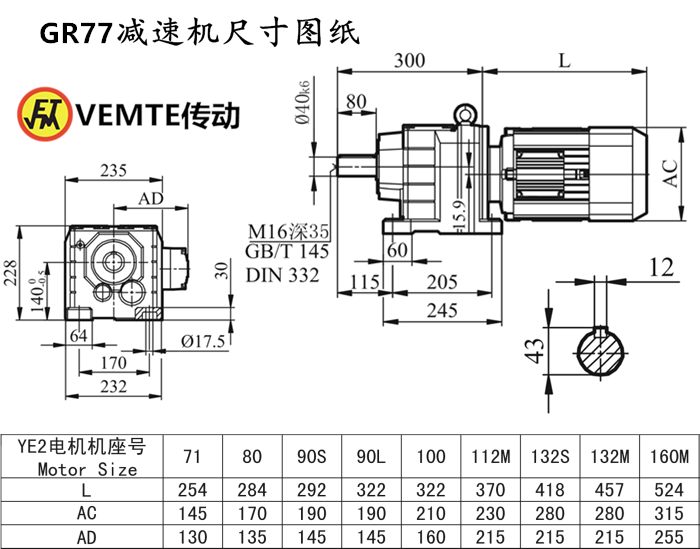

減速機R77安裝尺寸：輸出軸Φ40+鍵3（可定做），高228*寬232*長300（帶輸出軸）

R系列減速器R77輸出轉數：

7.2rpm/min減速機,8.4rpm/min減速機,9.6rpm/min減速機,10rpm/min減速機,12rpm/min減速機,14rpm/min減速機,15rpm/min減速機,17rpm/min減速機,18rpm/min減速機,21rpm/min減速機,24rpm/min減速機,27rpm/min減速機,31rpm/min減速機,32rpm/min減速機,38rpm/min減速機,42rpm/min減速機,48rpm/min減速機,55rpm/min減速機,60rpm/min減速機,65rpm/min減速機,74rpm/min減速機,79rpm/min減速機,90rpm/min減速機,100rpm/min減速機,114rpm/min減速機,129rpm/min減速機,145rpm/min減速機,163rpm/min減速機,181rpm/min減速機,206rpm/min減速機,234rpm/min減速機,264rpm/min減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

減速機R77輸出扭矩：

510N.m減速箱,540N.m減速箱,580N.m減速箱,610N.m減速箱,630N.m減速箱,690N.m減速箱,720N.m減速箱,740N.m減速箱,780N.m減速箱,780N.m減速箱,820N.m減速箱,（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

減速機R77電機型號：R77DV71S4,R77DV80S4,R77DV90S4,R77DV100S4,R77DV112S4,R77DV132S4,R77DV160S4,R77DT71S4,R77DT80S4,R77DT90S4,R77DT100S4,R77DT112S4,R77DT132S4,R77DT160S4,R77DRS71S4,R77DRS80S4,R77DRS90S4,R77DRS100S4,R77DRS112S4,R77DRS132S4,R77DRS160S4,R77DRE71S4,R77DRE80S4,R77DRE90S4,R77DRE100S4,R77DRE112S4,R77DRE132S4,R77DRE160S4,R77Y71S4,R77Y80S4,R77Y90S4,R77Y100S4,R77Y112S4,R77Y132S4,R77Y160S4,R77DV71M4,R77DV80M4,R77DV90M4,R77DV100M4,R77DV112M4,R77DV132M4,R77DV160M4,R77DT71M4,R77DT80M4,R77DT90M4,R77DT100M4,R77DT112M4,R77DT132M4,R77DT160M4,R77DRS71M4,R77DRS80M4,R77DRS90M4,R77DRS100M4,R77DRS112M4,R77DRS132M4,R77DRS160M4,R77DRE71M4,R77DRE80M4,R77DRE90M4,R77DRE100M4,R77DRE112M4,R77DRE132M4,R77DRE160M4,R77Y71M4,R77Y80M4,R77Y90M4,R77Y100M4,R77Y112M4,R77Y132M4,R77Y160M4,R77DV71L4,R77DV80L4,R77DV90L4,R77DV100L4,R77DV112L4,R77DV132L4,R77DV160L4,R77DT71L4,R77DT80L4,R77DT90L4,R77DT100L4,R77DT112L4,R77DT132L4,R77DT160L4,R77DRS71L4,R77DRS80L4,R77DRS90L4,R77DRS100L4,R77DRS112L4,R77DRS132L4,R77DRS160L4,R77DRE71L4,R77DRE80L4,R77DRE90L4,R77DRE100L4,R77DRE112L4,R77DRE132L4,R77DRE160L4,R77Y71L4,R77Y80L4,R77Y90L4,R77Y100L4,R77Y112L4,R77Y132L4,R77Y160L4,

電機減速機一體機R77配各種電機的實物圖：

減速機R77生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約

推薦類似型號：RF77減速機
