RX57減速機電機功率：齒輪減速電機

RX57Y0.18KW,RX57Y0.25KW,RX57Y0.37KW,RX57Y0.55KW,RX57Y0.75KW,RX57Y1.1KW,RX57Y1.5KW,RX57Y2.2KW,RX57Y3KW,RX57Y4KW,RX57Y5.5KW,RX57Y7.5KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

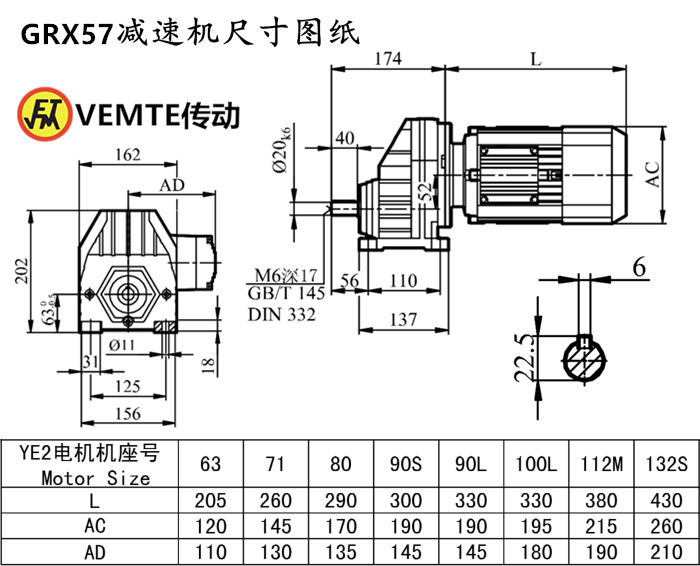

RX57減速機安裝尺寸：輸出軸Φ20+鍵2.5（可定做），高202*寬156*長174（帶輸出軸）

GR系列減速機RX57減速機減速比：

1:1.3減速器,1:1.48減速器,1:1.65減速器,1:1.92減速器,1:2.04減速器,1:2.37減速器,1:2.64減速器,1:2.91減速器,1:3.14減速器,1:3.55減速器,1:3.79減速器,1:4.35減速器,1:5.07減速器,1:5.5減速器,

RX57減速機輸出轉數：

176rpm減速機,255rpm減速機,322rpm減速機,369rpm減速機,394rpm減速機,446rpm減速機,481rpm減速機,530rpm減速機,591rpm減速機,686rpm減速機,729rpm減速機,848rpm減速機,946rpm減速機,1075rpm減速機。（以上rpm/min數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RX57減速機輸出扭矩：

36Nm減速箱,39Nm減速箱,63Nm減速箱,65Nm減速箱,67Nm減速箱,68Nm減速箱,69Nm減速箱。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

斜齒輪減速器RX57型號：RX57DV63S4,RX57DV71S4,RX57DV80S4,RX57DV90S4,RX57DV100S4,RX57DV112S4,RX57DV132S4,RX57DT63S4,RX57DT71S4,RX57DT80S4,RX57DT90S4,RX57DT100S4,RX57DT112S4,RX57DT132S4,RX57DRS63S4,RX57DRS71S4,RX57DRS80S4,RX57DRS90S4,RX57DRS100S4,RX57DRS112S4,RX57DRS132S4,RX57DRE63S4,RX57DRE71S4,RX57DRE80S4,RX57DRE90S4,RX57DRE100S4,RX57DRE112S4,RX57DRE132S4,RX57Y63S4,RX57Y71S4,RX57Y80S4,RX57Y90S4,RX57Y100S4,RX57Y112S4,RX57Y132S4,RX57DV63M4,RX57DV71M4,RX57DV80M4,RX57DV90M4,RX57DV100M4,RX57DV112M4,RX57DV132M4,RX57DT63M4,RX57DT71M4,RX57DT80M4,RX57DT90M4,RX57DT100M4,RX57DT112M4,RX57DT132M4,RX57DRS63M4,RX57DRS71M4,RX57DRS80M4,RX57DRS90M4,RX57DRS100M4,RX57DRS112M4,RX57DRS132M4,RX57DRE63M4,RX57DRE71M4,RX57DRE80M4,RX57DRE90M4,RX57DRE100M4,RX57DRE112M4,RX57DRE132M4,RX57Y63M4,RX57Y71M4,RX57Y80M4,RX57Y90M4,RX57Y100M4,RX57Y112M4,RX57Y132M4,RX57DV63L4,RX57DV71L4,RX57DV80L4,RX57DV90L4,RX57DV100L4,RX57DV112L4,RX57DV132L4,RX57DT63L4,RX57DT71L4,RX57DT80L4,RX57DT90L4,RX57DT100L4,RX57DT112L4,RX57DT132L4,RX57DRS63L4,RX57DRS71L4,RX57DRS80L4,RX57DRS90L4,RX57DRS100L4,RX57DRS112L4,RX57DRS132L4,RX57DRE63L4,RX57DRE71L4,RX57DRE80L4,RX57DRE90L4,RX57DRE100L4,RX57DRE112L4,RX57DRE132L4,RX57Y63L4,RX57Y71L4,RX57Y80L4,RX57Y90L4,RX57Y100L4,RX57Y112L4,RX57Y132L4

齒輪減速馬達RX57減速機配各種電機實物圖：

RX57減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://dgzxbz.com.cn/product/list-rxxiliejiansuji-cn.html

推薦類似型號：減速機R57
