F87齒輪減速電機功率：

F87Y0.55KW,F87Y0.75KW,F87Y1.1KW,F87Y1.5KW,F87Y2.2KW,F87Y3KW,F87Y4KW,F87Y5.5KW電機,F87Y7.5KW,F87Y11KW,F87Y15KW,F87Y18.5KW,F87Y22KW。（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。

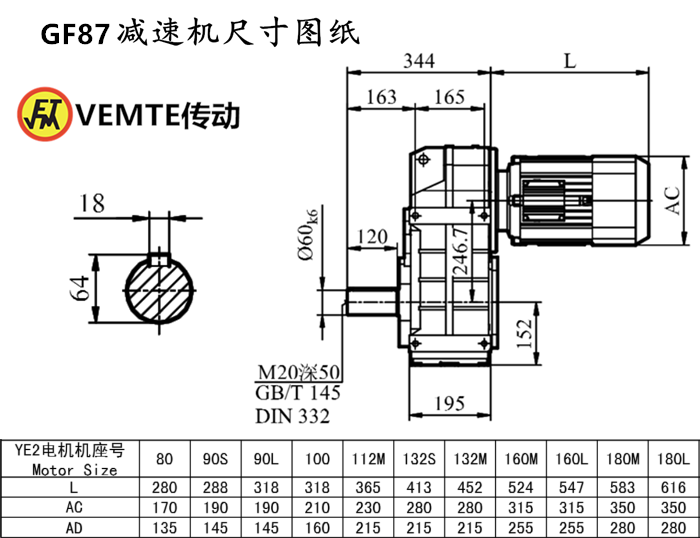

F87減速機安裝尺寸：輸出軸Φ60+鍵4（可定做），高531*寬330*長344（帶輸出軸）F系列減速機

F87減速機減速比：

1:270減速機,1:255減速機,1:228減速機,1:197減速機,1:179減速機,1:159減速機,1:134減速機,1:123減速機,1:109減速機,1:97減速機,1:88減速機,1:76減速機,1:68減速機,1:56減速機,1:50減速機,1:45減速機,1:39減速機,1:35減速機,1:29減速機,1:33減速機,1:28減速機,1:26減速機,1:23減速機,1:21減速機,1:19減速機,1:17減速機,1:15減速機,1:13減速機,1:11減速機,1:9減速機,1:8減速機,1:7減速機,1:6減速機,1:5減速機,1:4減速機

F87平行軸減速機輸出轉數：

5.2轉減速機,5.5轉減速機,6.1轉減速機,7.1轉減速機,7.8轉減速機,8.8轉減速機,10轉減速機,11轉減速機,13轉減速機,14轉減速機,16轉減速機,18轉減速機,20轉減速機,25轉減速機,28轉減速機,31轉減速機,36轉減速機,40轉減速機,48轉減速機,49轉減速機,53轉減速機,59轉減速機,66轉減速機,73轉減速機,82轉減速機,90轉減速機,107轉減速機,122轉減速機,146轉減速機,169轉減速機,190轉減速機,211轉減速機,249轉減速機,285轉減速機,340轉減速機。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

F87減速機輸出扭矩：

3000N.m減速機,2940N.m減速機,2880N.m減速機,2820N.m減速機,2720N.m減速機,2610N.m減速機,2510N.m減速機,2450N.m減速機,1530N.m減速機,1460N.m減速機。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大）

F系列減速機F87型號：F87DRE100M4,F87DRE112M4,F87DRE132M4,F87DRE160M4,F87DRE180M4,F87DRE80M4,F87DRE90M4,F87DRS100M4,F87DRS112M4,F87DRS132M4,F87DRS160M4,F87DRS180M4,F87DRS80M4,F87DRS90M4,F87DT100M4,F87DT112M4,F87DT132M4,F87DT160M4,F87DT180M4,F87DT80M4,F87DT90M4,F87DV100M4,F87DV112M4,F87DV132M4,F87DV160M4,F87DV180M4,F87DV80M4,F87DV90M4,F87Y100M4,F87Y112M4,F87Y132M4,F87Y160M4,F87Y180M4,F87Y80M4,F87Y90M4,F87DRE100L4,F87DRE112L4,F87DRE132L4,F87DRE160L4,F87DRE180L4,F87DRE80L4,F87DRE90L4,F87DRS100L4,F87DRS112L4,F87DRS132L4,F87DRS160L4,F87DRS180L4,F87DRS80L4,F87DRS90L4,F87DT100L4,F87DT112L4,F87DT132L4,F87DT160L4,F87DT180L4,F87DT80L4,F87DT90L4,F87DV100L4,F87DV112L4,F87DV132L4,F87DV160L4,F87DV180L4,F87DV80L4,F87DV90L4,F87Y100L4,F87Y112L4,F87Y132L4,F87Y160L4,F87Y180L4,F87Y80L4,F87Y90L4,F87DRE100S4,F87DRE112S4,F87DRE132S4,F87DRE160S4,F87DRE180S4,F87DRE80S4,F87DRE90S4,F87DRS100S4,F87DRS112S4,F87DRS132S4,F87DRS160S4,F87DRS180S4,F87DRS80S4,F87DRS90S4,F87DT100S4,F87DT112S4,F87DT132S4,F87DT160S4,F87DT180S4,F87DT80S4,F87DT90S4,F87DV100S4,F87DV112S4,F87DV132S4,F87DV160S4,F87DV180S4,F87DV80S4,F87DV90S4,F87Y100S4,F87Y112S4,F87Y132S4,F87Y160S4,F87Y180S4,F87Y80S4,F87Y90S4

F87減速機配各種電機的實物圖：

F87減速機生產工廠展示：看廠請聯系微信13826972124，獲取位置，需提前一天預約http://dgzxbz.com.cn/product/list-fxiliejiansuji-cn.html

推薦類似型號：減速機FF87
